Parámetros técnicos
Equipo y paquete
Certificado CE, FDA, ISO

Se utiliza para la soldadura automática de anillos de tubería circular El diseño, fabricación, instalación y puesta en marcha del equipo se entregará a la Parte B una vez que la aceptación del equipo esté calificada Tras una consulta amistosa entre las dos partes, la propuesta técnica es la siguiente

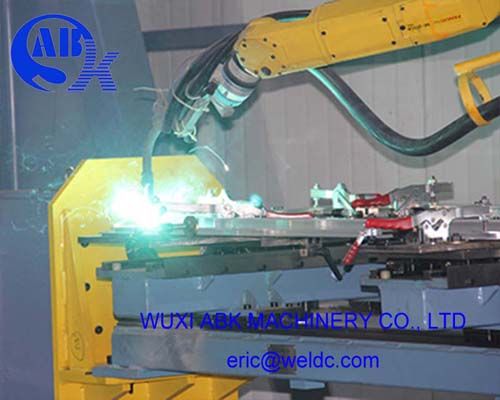

Robot contenedor soldadura automática

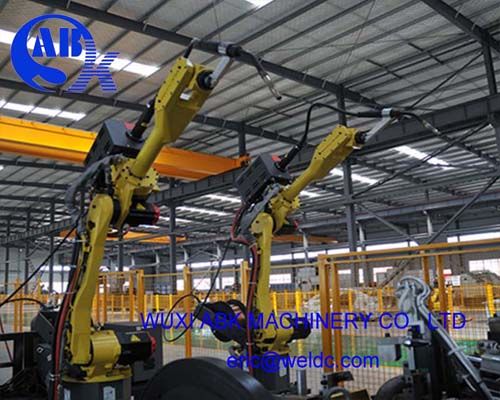

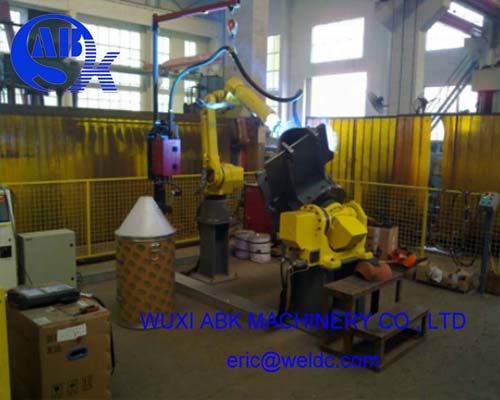

El sistema de robot vertical consiste en una estación de M-10iA fancu del robot de soldadura, un juego de máquina de posicionamiento de juntas giratorias 4T, dos juegos de servomotor robot fancu 45KW, dos juegos de reductor de RV Teijin, carril automático para caminar La herramienta de posicionamiento de sujeción, sistema de soldadura MEEGMET ARTSEN 500 C, kit de soldadura TBI82W, que consiste en protección de seguridad y sistema de control eléctrico Cada estación de trabajo puede vincular el número total de ejes para el eje 9, la instalación vertical de la estación robot, segura y fiable

Información principal de la pieza de trabajo

No

Workpiece information

Content

1

Use object

Pipe girth welding

2

Model

Diameter≤φ800mm;Length4000mm

3

Material

Q235

4

Welding method

Gas shielded arc weldingMAG);

5

Weld profile

Outer ring and inner ring joint

6

Protective gas

Mixed gas80%Ar-20%CO2

7

Specification of welding wire

Φ16mm;

8

Weld seam accessibility

90%;

9

Surface treatment

To clean up the oil, and other   impurities, the weld to find a place to Polish;

10

Component dimensions

Group pair gap1mm;Repeat accuracy of parts1mm



Requisitos del entorno de la fábrica

1 Temperatura ambiente: temperatura de funcionamiento de 0 ~ 45 grados C; Cociente de temperatura de 1,1 grados C /min

2 Humedad relativa: 75% RH humedad ambiental general 20% (sin ocasiones de condensación); Corto plazo (en 1 mes) Tras 95% RH (ocasiones sin condensación)

3 REQUISITOS de aire comprimido de fábrica

Presión del aire comprimido: 0,5-07Mpa; Aire comprimido

Diámetro del tubo de salida: 1 pulgadas;

La temperatura del punto de rocío es de-40℃;De tamaño de partícula01um;El contenido de aceite0,01 mg/m³

4Factory electricity demand

All the electrical and electronic equipment manufacturing power supply using 50HZ (+ 1), 380V (+ 10%) three-phase AC voltage, to ensure that the power supply to a ground

5Workshop Foundation requirements

Workshop ground requirement: foundation ground is compacted, ensure the compressive strength is greater than 012MP workshop ground concrete compressive strength is greater than 23MPa (suggest concrete grade C30 above)

Alcance del suministro

No

Parts

Name

Unit

Quantity

Remarks

1

Robot   system

M-10ia   Robot body;

set

1

FANUC

R-30iB   Controller B-CAB cabinet and control cable;

set

Arc   welding software package, welding seam tracking, arc tracking and other   functions;

set

Color   display device and 20m flexible cable;

set

Rotary   servo motor of variable bit machine and flexible cable;

set

2

Welding   system

ARTSEN   500C Welding power source;

set

1

MEEGMET   or

Lincoln

External   wire feeding machine  VR1500;

set

Protective   gas detection switch, pressure reducing valve, flow meter;

set

The   trachea, control cable; wire barrel accessories

set

The   trachea, control cable; wire barrel accessories

set

3

Suite of

welding   torch

External   22°   water-cooled torch gun neck;

set

1

TBI

Install   the module and clamping mechanism;

set

The   welding torch cable, cable bracket and gun accessories

set

4

4T   Rotary positioner

Head   positioner and structure;

set

1

FANUC

Rotary   positioner and structure;

set

Rotary   shaft motor, drive and control cable;

set

Rotation   axis main shaft box and speed reducer;

set

Axis   of rotation main shaft box and speed reducer;

set

Lock   cylinder, solenoid valve, gas pipe, joint;

set

Rotary   support, drive gear;

set

Towline,   protective cover, bracket and accessories etc

set

5

Electrical   control and safety protection system

PMC   Software programming

set

1

Master

Hyper

Electric   control cabinet, control cable and wire slot;

set

Three   color warning lamp, buzzer dual alarm device;

set

Electrical   protective frame and accessories

set

6



System   integration

Packaging,   transportation and insurance

time

1

KING

LASER

Installation,   commissioning and acceptance

time

1

Training   at least three employees to be able to operate the robot independently

time

1

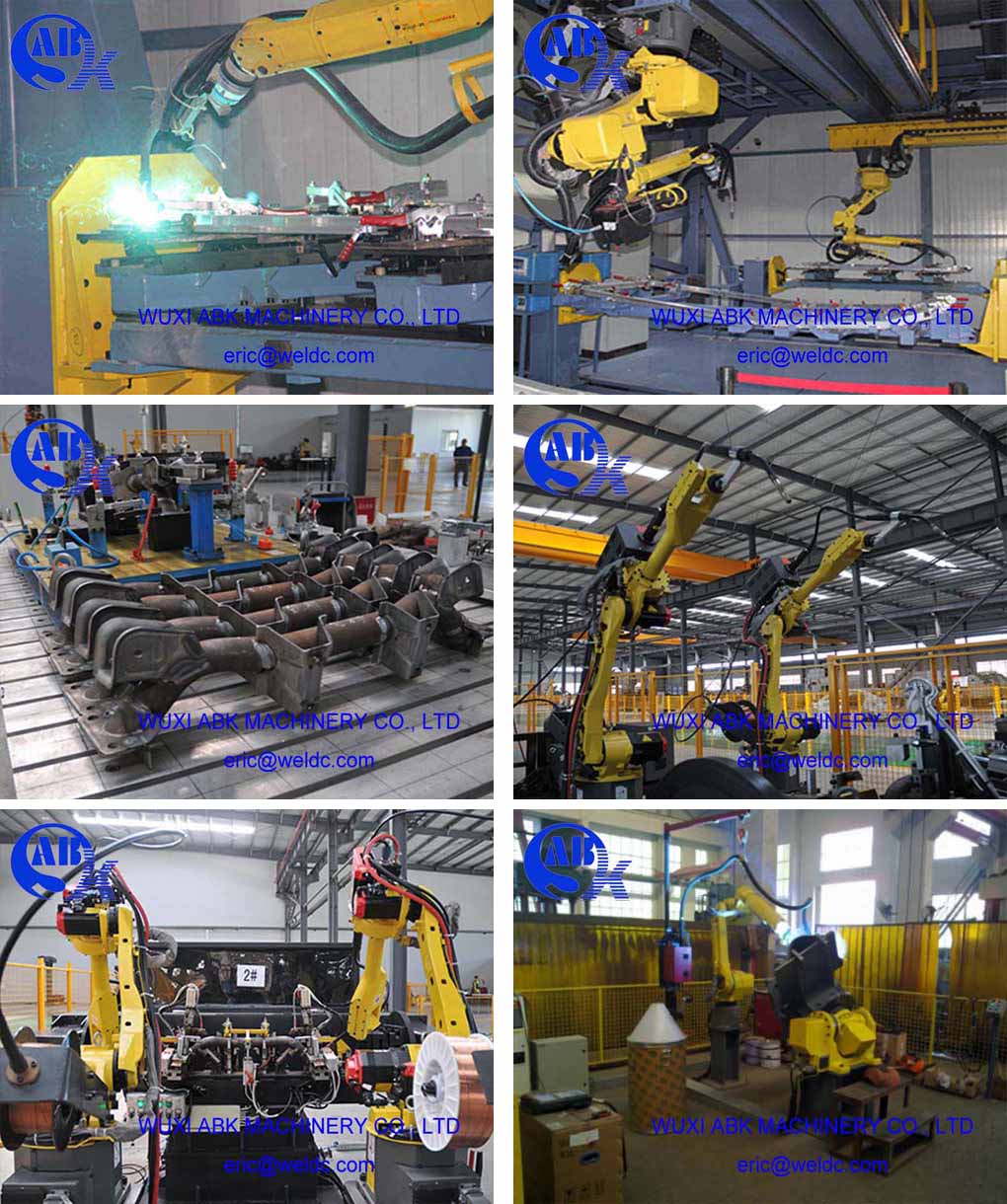

1593753158659643jpg






Established in 1999, Wuxi ABK Machinery CoLtd is a professional manufacturer of welding positioner in China Apart from welding positioner, we still have many other high-quality products, such as welding rotator, welding turnable, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc With ISO and CE certification, our products are quite popular among clients from Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more If you need welding positioner, please contact us freely
